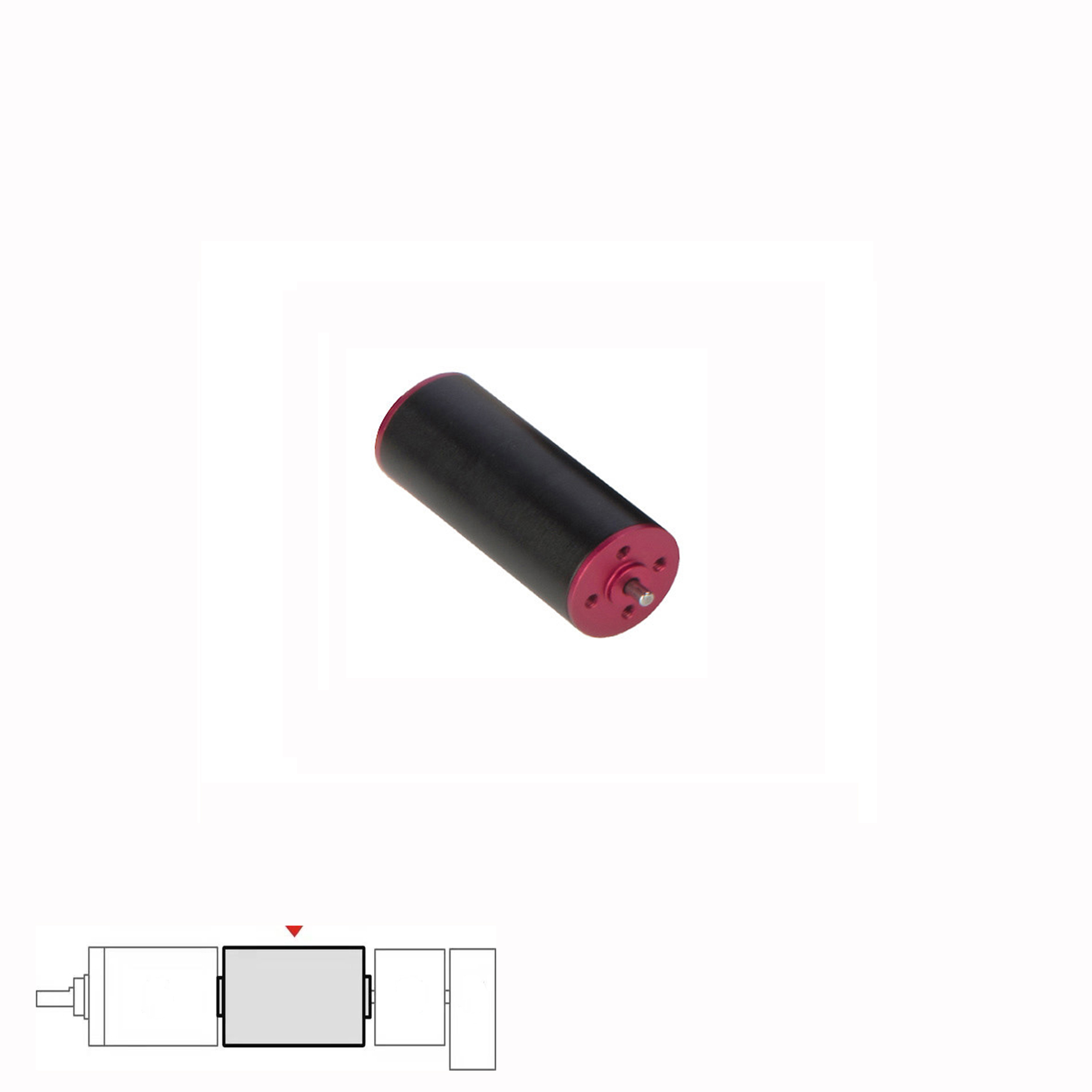

AM-BL2453AE Series

$75.00
Models
Diameter φ 24 mm Length 53 mm
Driver Condition Non-Integrated Nominal Voltage 12 V
No Load Speed ±12% 13010 rpm No Load Current Max 150% 180 mA
Rated Power 34.8 W Rated Speed 10962 rpm
Rated Torque 30.3 mN.m Rated Current 3650 mA
Starting Current 22222 mA Stall Torque 193 mN.m
Max Winding Temp. 125 °C Maximum Power Output 65.6 W
Maximum Efficiency 83 % Weight 127 g
Integrated or Separate Driver Independent Driver
Diameter φ 24 mm Length 53 mm
Driver Condition Non-Integrated Nominal Voltage 12 V
No Load Speed ±12% 10460 rpm No Load Current Max 150% 140 mA
Rated Power 27.5 W Rated Speed 8308 rpm
Rated Torque 31.6 mN.m Rated Current 3050 mA
Starting Current 14286 mA Stall Torque 153 mN.m
Max Winding Temp. 125 °C Maximum Power Output 42 W
Maximum Efficiency 81 % Weight 127 g
Integrated or Separate Driver Independent Driver
Diameter φ 24 mm Length 53 mm
Driver Condition Non-Integrated Nominal Voltage 18 V
No Load Speed ±12% 28715 rpm No Load Current Max 150% 420 mA
Rated Power 35.8 W Rated Speed 27679 rpm
Rated Torque 12.4 mN.m Rated Current 2500 mA
Starting Current 58065 mA Stall Torque 343 mN.m
Max Winding Temp. 125 °C Maximum Power Output 257.5 W
Maximum Efficiency 84 % Weight 127 g
Integrated or Separate Driver Independent Driver
Diameter φ 24 mm Length 53 mm
Driver Condition Non-Integrated Nominal Voltage 18 V
No Load Speed ±12% 12920 rpm No Load Current Max 150% 115 mA
Rated Power 31 W Rated Speed 10775 rpm
Rated Torque 27.5 mN.m Rated Current 2200 mA
Starting Current 12676 mA Stall Torque 166 mN.m
Max Winding Temp. 125 °C Maximum Power Output 56 W
Maximum Efficiency 82 % Weight 126 g
Integrated or Separate Driver Independent Driver
Diameter φ 24 mm Length 53 mm
Driver Condition Non-Integrated Nominal Voltage 24 V
No Load Speed ±12% 13625 rpm No Load Current Max 150% 100 mA
Rated Power 36.7 W Rated Speed 11668 rpm
Rated Torque 30 mN.m Rated Current 1900 mA
Starting Current 12632 mA Stall Torque 209 mN.m
Max Winding Temp. 125 °C Maximum Power Output 74.6 W
Maximum Efficiency 83 % Weight 127 g
Integrated or Separate Driver Independent Driver
Diameter φ 24 mm Length 53 mm
Driver Condition Non-Integrated Nominal Voltage 24 V
No Load Speed ±12% 9770 rpm No Load Current Max 150% 75 mA
Rated Power 27.1 W Rated Speed 7836 rpm
Rated Torque 33.1 mN.m Rated Current 1500 mA
Starting Current 7273 mA Stall Torque 167 mN.m
Max Winding Temp. 125 °C Maximum Power Output 42.7 W
Maximum Efficiency 81 % Weight 127 g
Integrated or Separate Driver Independent Driver
BL2453
BL2453
